Reduce the starting current of the motor, reduce the di-stribution capacity, and avoid investment in capacity ex-pansion;
Reduce starting stress and extend the service life of motors and related equipment;
Smooth start and soft stop avoid the surge problem and water hammer effect of traditional starting equipment;
A variety of starting modes and a wide range of current and voltage settings, can adapt to a variety of load occ-asions, improve the process;
Improve the reliable protection function, more effective-ly protect the safety of the motor and related equipment;
Can be used for frequent start and stop The occasion.
In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, K-Drive, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.
In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.
| Performance | Common brands | K-Drive |
|---|---|---|
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-480VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experience |

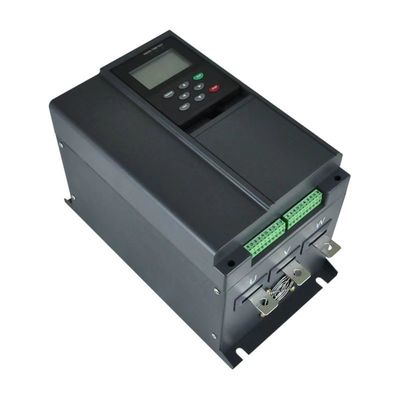

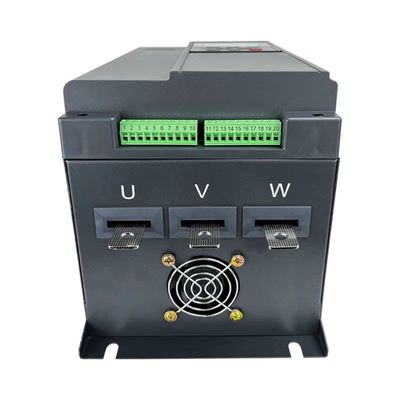

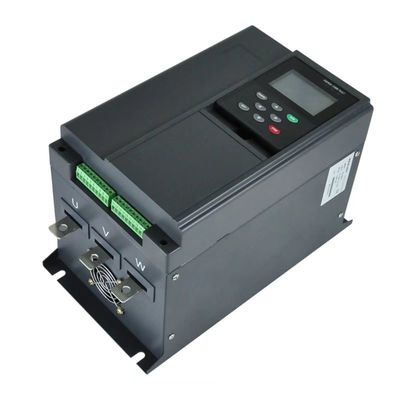

An AC motor soft starter is a device used to start and control the speed of an AC motor. It reduces the initial inrush current and torque that occurs during the starting of a motor. This helps to prevent damage to the motor and connected equipment, as well as reduce electrical and mechanical stress on the motor.
The soft starter works by gradually ramping up the voltage supplied to the motor, thereby limiting the amount of current drawn by the motor during startup. This is achieved through a series of thyristors or other solid-state switching devices that control the power supply to the motor.
Soft starters are commonly used in applications where there is a need to start a motor with a high load, or where there are concerns about mechanical stress or damage to the motor or equipment. They are commonly used in industrial applications such as pumps, compressors, and conveyor systems.
