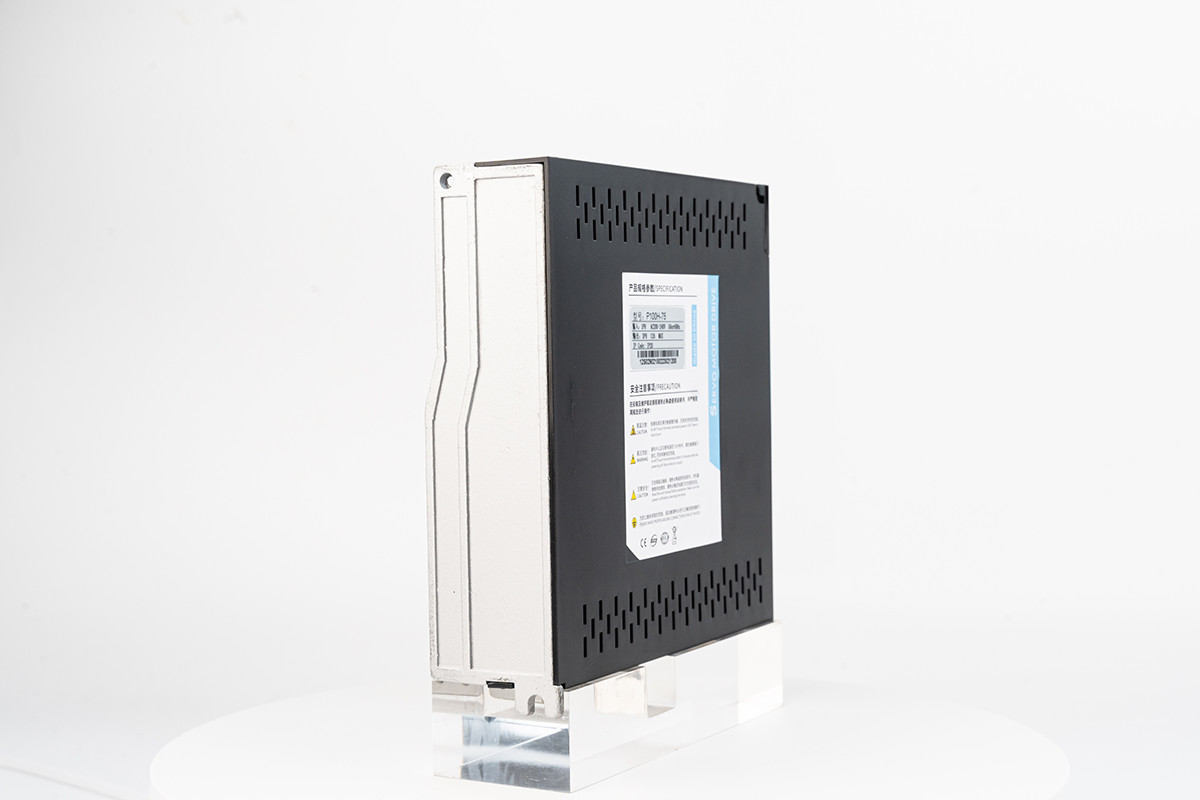

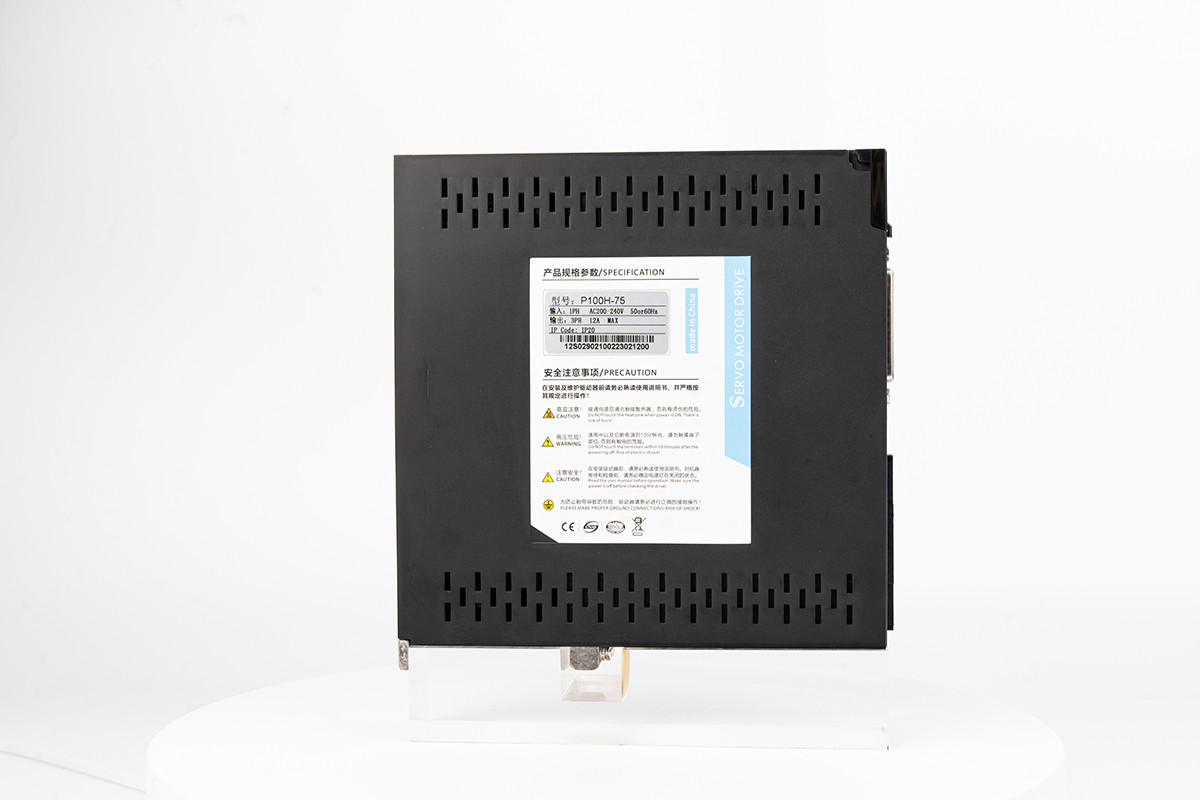

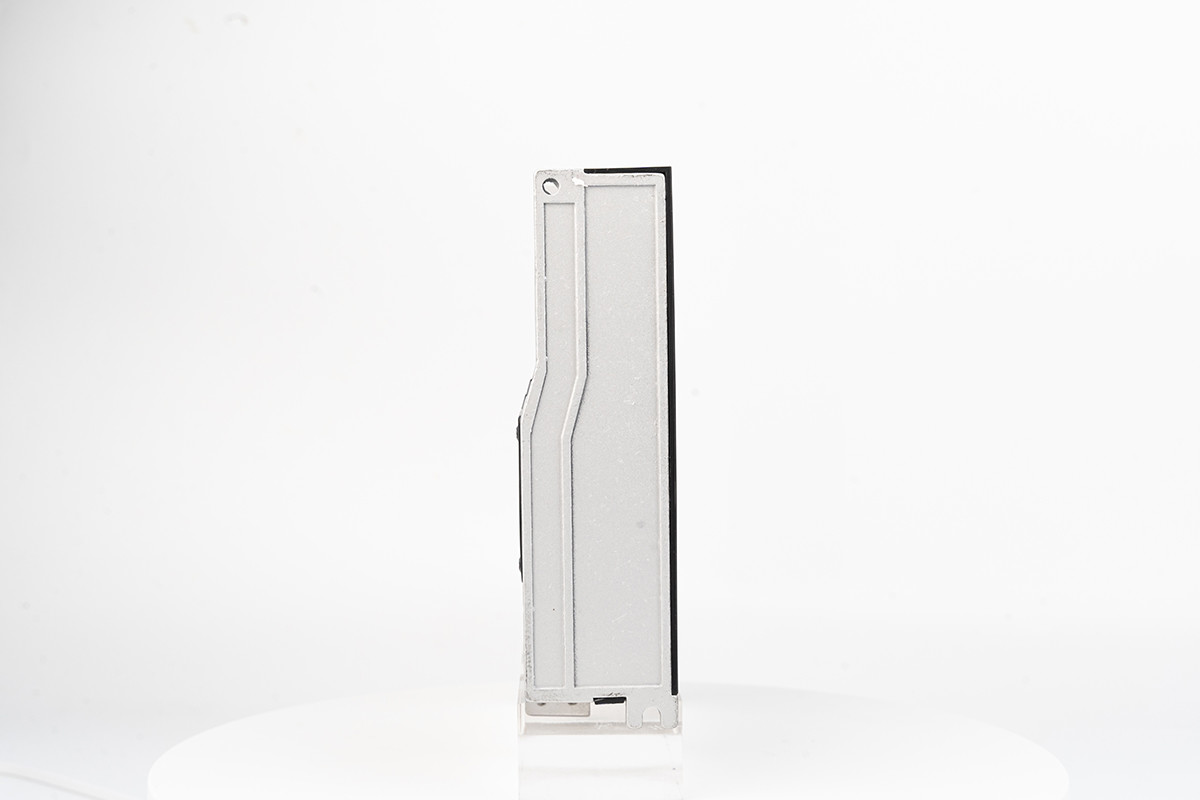

Pulse Type AC Servo System
Strong internal motion control functions which can realize position, speed,torque,homing controlling modes. It also supports I/O control and standard Modbus RTU protocol. It can replace PLC partly, which helps to save cost.
Drives Of P100S Series As Example:
Drives Of P300 Series As Example:
EtherCAT Bus Field AC Servos
System Wiring Example
Dimension
Drive Specification
In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, K-Drive, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.
| Performance | Common brands | K-Drive |
|---|---|---|
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-480VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experience |
In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.
An AC servo system, also known as an AC servo motor, is a type of motor that uses alternating current (AC) to precisely control the movement of a mechanism or load. It is commonly used in industrial and robotics applications where accurate positioning and speed control are required. AC servo systems typically consist of a motor, a feedback sensor, and a control system. The control system uses the feedback from the sensor to adjust the motor's speed and position, ensuring that it operates with high accuracy and precision. AC servo systems are often used in applications such as robotics, CNC machines, and automated manufacturing processes, where precise and repeatable motion control is critical.
