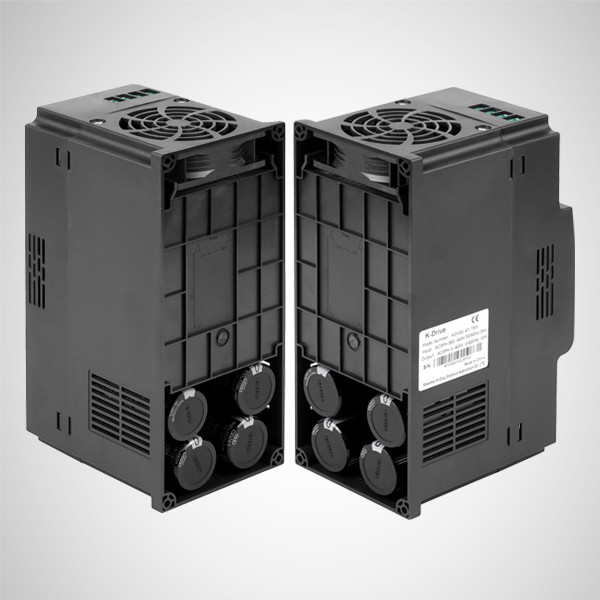

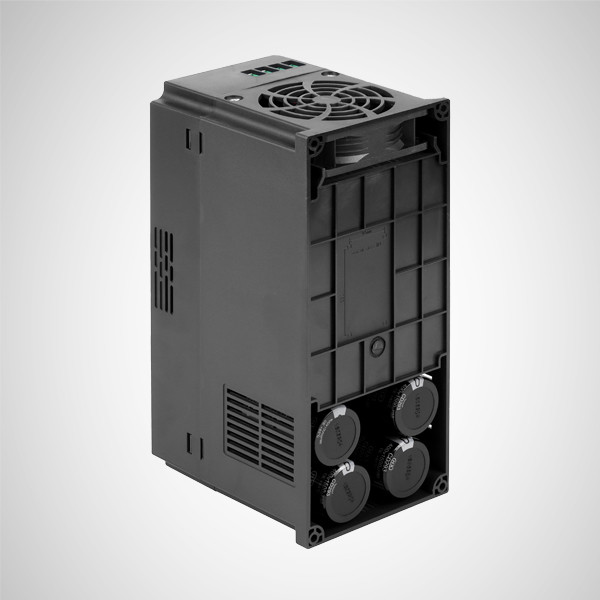

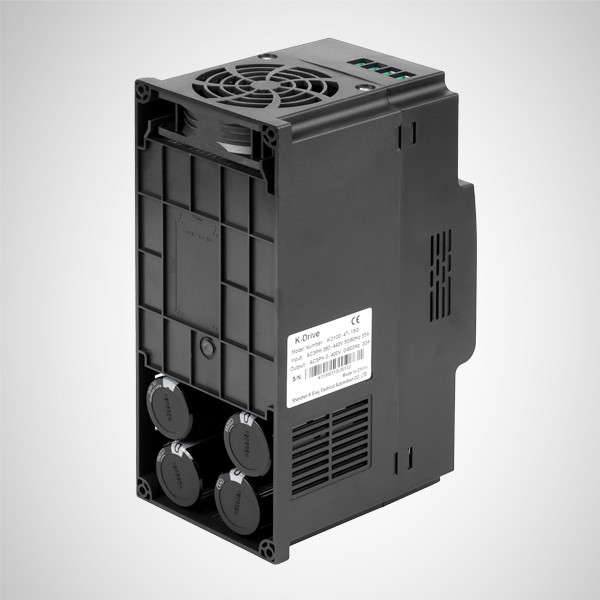

Variable frequency drive 0.75kw-710kw VFD single phase Three Phase
Product Advantage
KD100 Excellent control performance
0.1s command acceleration and deceleration under rated load of motor
When the motor is switching over zero speed, there is no phase change and oscillation in the current, and the speed is not pulsating.
Bus voltage control is stable, deceleration without dynamic braking can also provide fast and reliable braking capability
Realize no tripping operation
Excellent current and voltage control technology, alternately accelerating and decelerating with 0.1s command, the inverter is stable without tripping operation
Strong overload capacity, continuous operation for 10s under 180% rated load condition, 1 minute continuous operation under 150% rated load condition
Low frequency and high torque stable operation under vector control
Unique power grid instantaneous power-down processing
Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, K-Drive frequency inverters are equipped with advanced features, some of which are listed as below:
01. Starting torque: 180% at 0.5Hz (V/f pattern, SVC pattern);
02. Speed adjustable range: 1: 100 (V/f pattern, SVC pattern);
03. Speed accuracy: +/-0.5% (V/f pattern), +/-0.2% (SVC pattern);
04. Over load capability: 150% 1minute, 180% 10seconds;
05. Abundant frequency command sources;
06. Diverse input and output terminals;
07. Ambient temperature: -10°C~50°C;
08. High precise torque constraint, process PID control, multi-speed control, contracting brake control, field weakening control, all sides protection, etc;
09. Online and offline auto-tuning of motor parameters can both performed;
10. Extremely short-time acceleration can be performed without any trip, such as 0.1s or 0s from 0Hz to 50Hz;
| Mains Supply (L1/L,L2,L3/N) | |
|---|---|
| Supply voltage | 208-240V±10% 380-480V±10% |
| Power source frequency | 50/60Hz±5% |
| Displacement power factor (cos φ) | (> 0.98) |
| Output Data (U, V, W) | |
|---|---|
| Output voltage / frequency | 0-100% of supply voltage / 0.00-600.00 Hz or customized |
| Ramp time | 0.01-60000 S |
Note:150% current can be provided for 1 minute, 180% for 10 seconds. Higher overload rating is achieved by oversizing the drive.
| Digital Input | |
|---|---|
| Programmable digital inputs | 5 |
| Logic | NPN or PNP |
| Voltage level | 22 - 26V |
| Analog Input | |
| Analog inputs | 2 |
| Modes | Voltage or current |
| Level | 0 to +10V, 0/4 to 20 mA (scalable) |
| Automatic correction | YES |
| Relay Output | |
| Programmable relay outputs | 1 |
| RA - RB / TA - TB | Normally close |
| RA - RC / TA - TC | Normally open |
| Contact capacitance | 250VAC/3A, 30VDC/3A |
| Terminal 485 Interface | |
| 485+ / 485- | Rate: 4800/9600/19200/38400/57600/115200 bps Max. distance: 500m |
| GND | Isolated from COM |
| Ambient | |
| Vibration | Less than 5.9 m/s² (0.6g) |
| Humidity | Relative humidity 5% - 95 %. No condensation |
| Corrosive environment | 3C3 |
| Ambient temperature | -10 ºC - 50 ºC |
| Altitude | 0 - 2,000 m |
| Rated output current derated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 - +70 ºC |
| Efficiency | Efficiency At rated amps: ≥93% |
| IP grade | IP20 |
| Cooling method | Forced air cooling |
| Fieldbus Communication | |
| Modbus RTU, Modbus ASCII | Built-in |
KD100 drives are economical series at K-Drive. They offer V/f control, including voltage and frequency separated control, adaptable to various industrial applications if sensor-less vector control is not required, including printing machines, packaging machines, pumps, fans and blowers, etc.
|
|
|
| Conveyors | Centrifuges | Food processing Machinery |
|
|
|
| Pumps | Fans | More … |
In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, K-Drive, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.
In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.
| Performance | Common brands | K-Drive |
|---|---|---|
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-480VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experience |
Please leave us an inquiry for more details of our frequency inverters, like information of the model numbers, technical data, applicable application, pricing, distributor policy, lead time and/or customized functionality.
