DC Input AC Output 220V Single Phase Pump Solar VSD MPPT Solar Pump Inverter

10
MOQ
USD 50~300 per unit
Price
DC Input AC Output 220V Single Phase Pump Solar VSD MPPT Solar Pump Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

220V MPPT Solar Pump Inverter

,

Pump Solar VSD

,

Single Phase MPPT Solar Pump Inverter

Basic Infomation
Place of Origin: China
Brand Name: K-Drive
Certification: CE/ISO9001
Model Number: SP600
Payment & Shipping Terms
Packaging Details: Carton/Plywood box
Delivery Time: 3~12 working days
Payment Terms: T/T, Western Union, , L/C
Supply Ability: 2000pcs/Month
Product Description

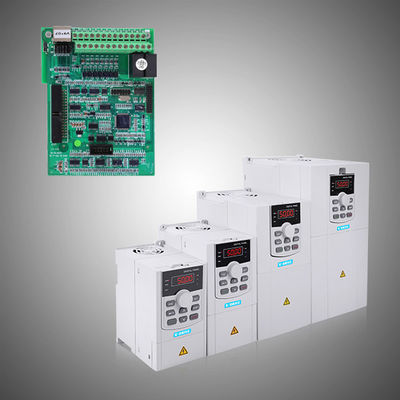

SP600 Series PV solar pump inverter is a newly developed controller specialized for solar pump application. It’s mainly used for remote areas where without power supply or power is unstable. SP600 support normal IM induction motor ,PMS permanent magnet synchronize motor water pump and 220V single phase motor pump. Besides, it support ultra low DC input voltage, as low as DC60V to drive a water pump. This will dramatically reduce total cost for end users. MPPT function makes sure SP600 always working at highest efficiency.



Features and Functions



1. SP600 support 220V single phase motor pump

2. SP600 support both IM induction motor(A/S motor) and PM permanent magnet synchronize motor;

3. SP600 support ultra low DC input voltage, 60V DC to drive water pump below 170V AC.

4. PCB type available for OEM market

5. SP600 support AC/DC(solar) automatically switch to offer 24 hours pump running;

6. SP600 PV Pump Controller automatically detects the ambient temperature.When the temperature is too high, the controller will reduce the output power to maintain running as far as possible; When the controller temperature is cooled to a safe level, return to full power output;

7. SP600 PV Pump Controller integrate improved MPPT algorithm, variable step size in real time tracking the MPP. Compared to a conventional constant- voltage control (CVT) method, it is more precise in tracking, response speed is much quicker, and overcomes the shortage of conventional disturbances tracking method near the MPP wide fluctuated running;

8. When SP600 PV Pump Controller fails, the panel LED will display fault types,automatically reset regular failure, and enter into sleep and wake status according to the degree of light to ensure the controller run automatically the whole day.



Specification

Input & Output



Input voltage: 220V model DC 60~450V

                       AC 220~240V single phase

                       AC 220~240V three phase



                      380V model DC 230-800V

                      AC380~460V
